YUCEL MASTER MODULAR SHIPMENT AND MANEUVER SYSTEMS

Özde Denizcilik has been active in shipbuilding and supply industry with customer satisfaction for more than 15 years without compromising its quality understanding and has successfully completed many projects in Turkey and abroad and has become one of the leading brands in its sector.


MODULAR DESIGN

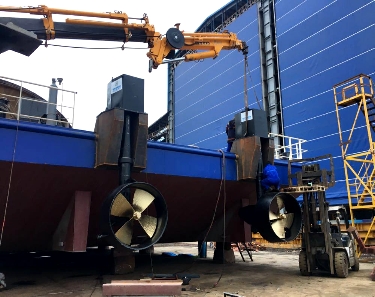

All the main equipment is placed on a single chassis, the installation of the system on the ship is completed in a very short time. Hydraulic cylinders are provided for up and down movement of the propeller to maximize propeller efficiency. By means of the same hydraulic cylinders, the propeller is lifted up from the waterline for ease of maintenance. Yücel Master Propulsion and Maneuvering Systems are divided into three main groups: electrical, hydraulic and mechanically driven.The system is designed for hybrid systems with electrical-mechanical and hydraulic-mechanical drives

propulsion systems

SUPERIOR FEATURES OF THE SYSTEM

- Modular design for all types of ships
- Auto pilot system can be integrated
- System commissioning is achieved in a very
short time
- Ease of use and maintenance
- 360 ° high maneuverability
- Hydraulic or electrically driven units for
emergencies
- High quality equipment that complies with the
most severe marine conditions
- Minimal vibration and low noise level
- Design and reproduction for all international
first-rate organizations

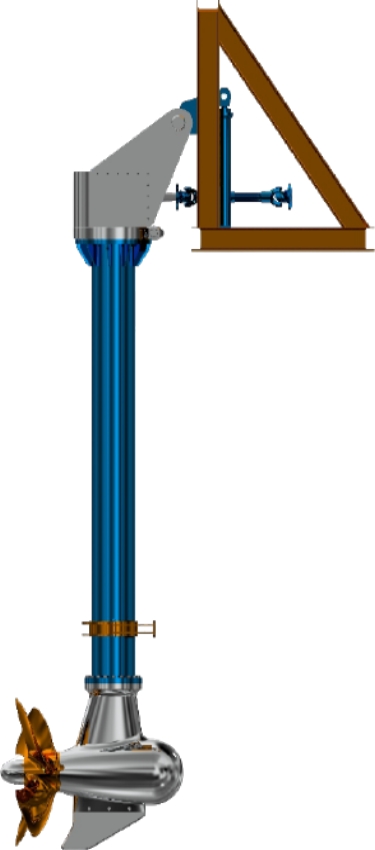

Azimuth Propulsion And Maneuvering Systems
Modal
Input Power–kW(HP)
Input Rotation  (rpm)
Propeller Diameter (mm)

YMA 300

 204(278)
2100
 850

YMA 350

 257(350)
 1950
 1050

YMA 450

 330(450)
 1800
 1200

YMA 750

 555(755)
 1800
 1450

YMA 900

 700(938)
 1600
 1600

YMA 1000

 749(1018)
 1600
 1750
